Blasting Knowledge

Pipes shot blasters are specifically designed as continuous machine to shot blast pipes. It can remove the welding spatters and oxide layers from the surface consequently obtain a metallic luster with a fine and homogeneous finish.

Qingdao Evertech sasi industry co.,ltd (ETSA) designs and manufactures fully automated upblast or downblast pipes machine for surface profiling and removing rust and mill scale from welded steel pipe. Pipe must be cleaned and dust free prior to the coating process.

Outer wall steel pipe shot blasting machine

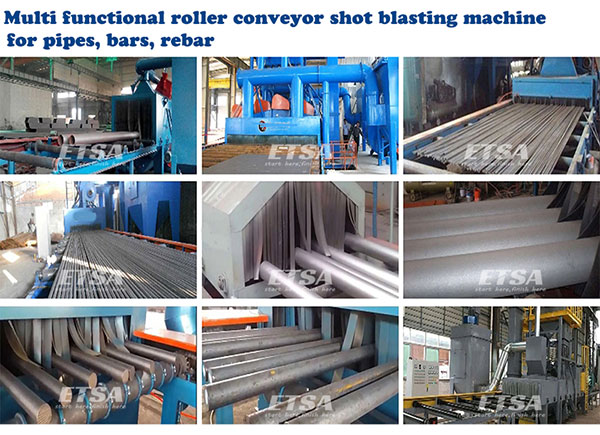

Pipe Shot Blasting Machine with Roller Conveyor System

Roller conveyor shot blasting machines are predominantly used to clean steel pipes,metal plates and profiles in a continuous through feed process.

A variety of roller conveyors for different uses and work speeds is available.

For the treatment of steel pipes or profiles in the steel construction or steel preparation industries.

As stand alone units or integrated into an automatic transportation or sawmill/bore line.

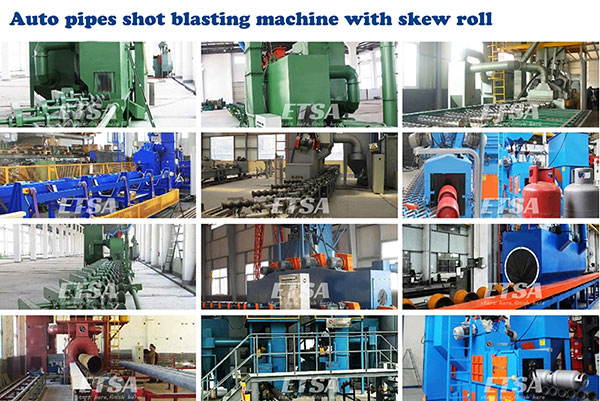

Pipe Shot Blasting Machine with Skrew Roll

The ETSA skew roll shot blasting machine is a fully automated system designed to remove rust and scale from many cylindrical parts: Pipe, tube, round bar, torsion bars, drill rod, re-bar, gas cylinders, etc.

The part is conveyed through the blast machine on a specially designed skew roll type material handling system.

Pipe Shot Blasting Machine with Rubber Wheel

The ETSA pipes shot blasting machines are a fully automated system designed to remove rust and scale from steel pipes.  The pipes is conveyed through the blast machine on a specially designed external rubber wheel type material handling system.

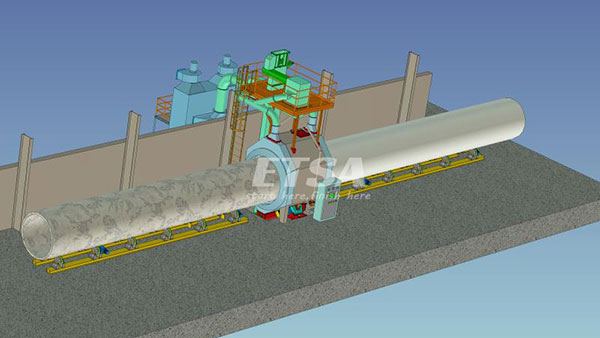

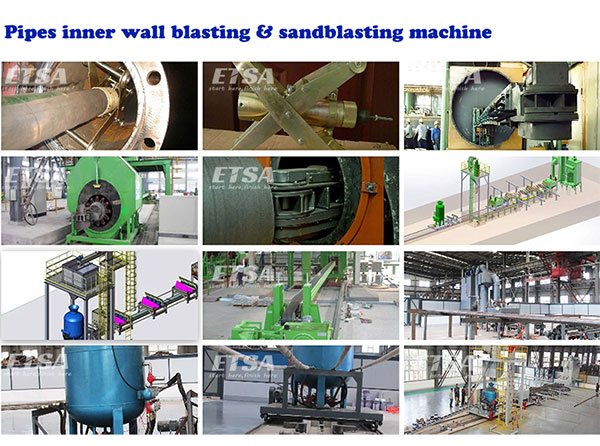

Inner wall steel pipe shot blasting machine / sandblasting equipment

Technically speaking, ETSA’s internal pipe blasting equipments are divided into air blasting equipments and wheel blasting equipments. the air blasting equipments are mainly for small pipes which diameter under 500mm, and it can blast processing up to 8 pieces at one time by with automatic pipe handling systems. the wheel blasting equipments are mainly for big pipes which diameter above 500mm, and it can only blast cleaning one piece at a time.

This kind of blasting equipment can not only clear the dirt, scale, welding slag, etc. from the internal pipes, but it also can reduce the internal surface stress. Thus, this kind of equipment can vastly increase the service life of the steel pipe and reduce the internal corrosion of the steel pipe, thereby improving the intrinsic and appearance quality of the steel pipe.

The price of pipes shot blasting machine according to different configurations and types. When buying a pipes shot blaster, price is an important factor to consider. You need to consider your actual needs comprehensively. If you have any questions about buying a pipes shot blasting machine, please feel free to consult us. info@allblastingtec.com
