Spinner Double Hanger Hook Type Shot Blasting Machine is in Fabrication


Double Hanger Shot Blasting Machine is in Fabrication on April 29, the customer mainly blast cleaning weldment, the size of blasting chamber is 1800×1800×2800mm with 2 units high efficient blast turbines.

Spinner Double Hanger Hook Type Shot Blasting Machine is blast cleaning equipment for casting parts, forging parts, weldment and small fabricated metal work pieces. Bigger work pieces can be put on hanger hook uniquely. Smaller work pieces will be put on special tooling and then put on hanger hooks. After loading work pieces, hanger hooks will be driven into blasting chamber along T or Y overhead rails.


Work pieces are rotating in blasting chamber to get steel shot impact from blasting wheels mounted on one side chamber wall. The other side of chamber wall is called hot area because it get strong abrasive flow.

Hot area is protected by high manganese steel. After 5-10 min blast cleaning, work pieces will go out along T or Y overhead rails.


Transport System


1.I type and Y type

I type transport system is a simplex working mechanism, suitable for heavy workpiece.

Y type transport system are two stations to continuous operation, one hook works in the blasting chamber and another can be loading and unloading workpiece.

All the control system in electric control panel, ensuer the safely of the worker.

2.  Change track function

Air control valve controls track changing function, ensure the smoothness and safety of transportation.

3. Rotation system

Each hooks have rotation system, that ensure abrasive completely cover the workpiece.


Abrasive Recycling System

Screw Conveyor: Mounted at basting chamber bottom to collect used steel shots and deliver to bucket elevator.

Bucket Elevator: To lift up used steel shots to separator.

Separator:To separator qualified steel shots and grits by screen filtering& ventilation filtering.

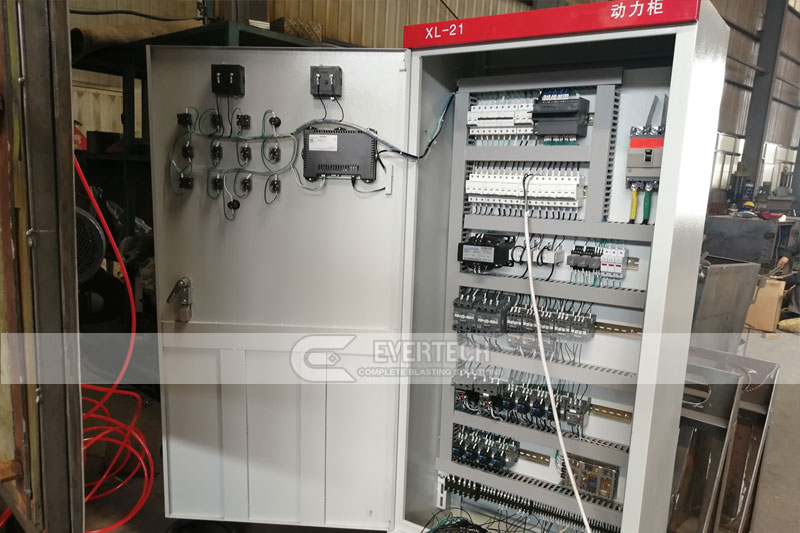

Electric control panel

1.Intelligent Control System:

Full auto/manual control system

2. Safety System:

System emergency power off when gate/window open

3. Brand choose

PLC: Siemens/ Omron

Touch screen: Siemens/ Weinview

Electric elements: Schneider/ Siemens


Our philosophy: Professional, Efficiency, Loyal,

Our mission: To create core value for our customer, our staff and our company.

Choose Evertech blast, Get factory price and reliable shot blasting Machinery!
