User Cases

Workpiece:

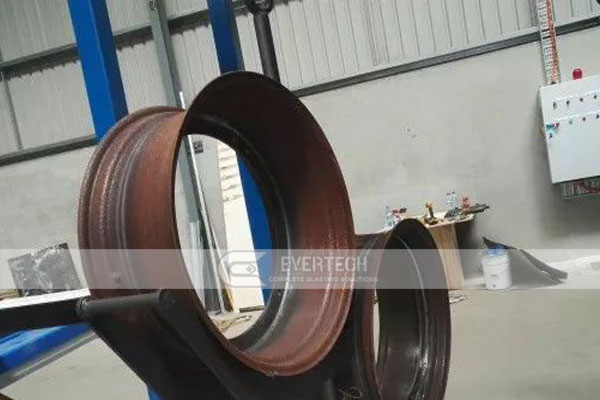

Name: tractor wheels

Material: steel

The max size of workpiece : Φ 1700 x 1500

Unit weight : ≤400Kg/pc

Machine capacity:

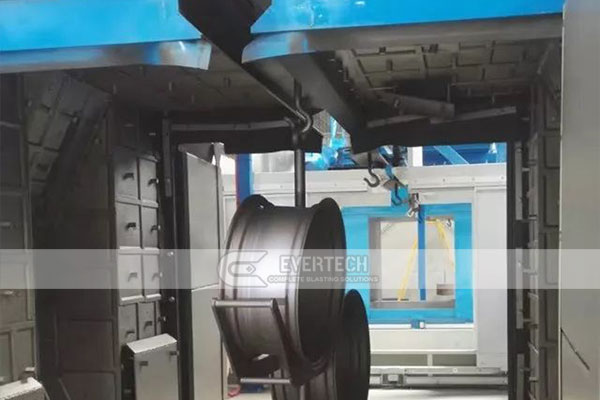

Machine blasting chamber size: L×W×H=3000×2300×2500mm

And cleaning scope : Φ1700 xH1500mm (each batch)

Catenary chain length: ～48000mm (including blasting and spray painting system)

Hanger quantity: 14 hooks in total

Weight capacity of each hook: ≤400Kg

Hook space between: 3200mm

Running speed of catenary chain: 8m/min

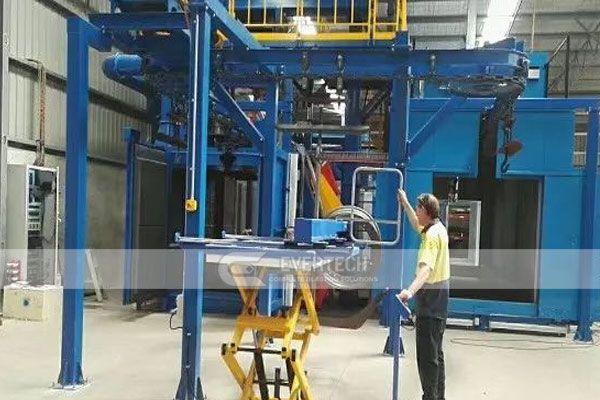

Description: this is a mixed job combined with shot blasting and spray coating line. We did this job together with our local partner who makes spray systems. We arrange the whole blasting system and hanger chain system(for both blasting and spraying system) and related electric control system.

The machine can finish blasting in 5-10minutes but need to wait the spray system which need 15minutes per batch.

It took less than 10weeks we finish design and production, and our customer came to our site to test the machine.

Our partner did a great job for mechanism installation to finish the commissioning with 2 weeks.
