User Cases

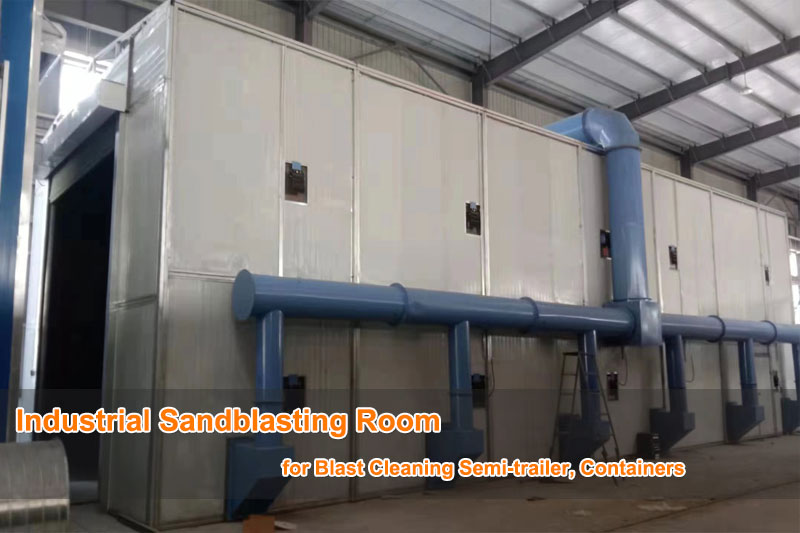

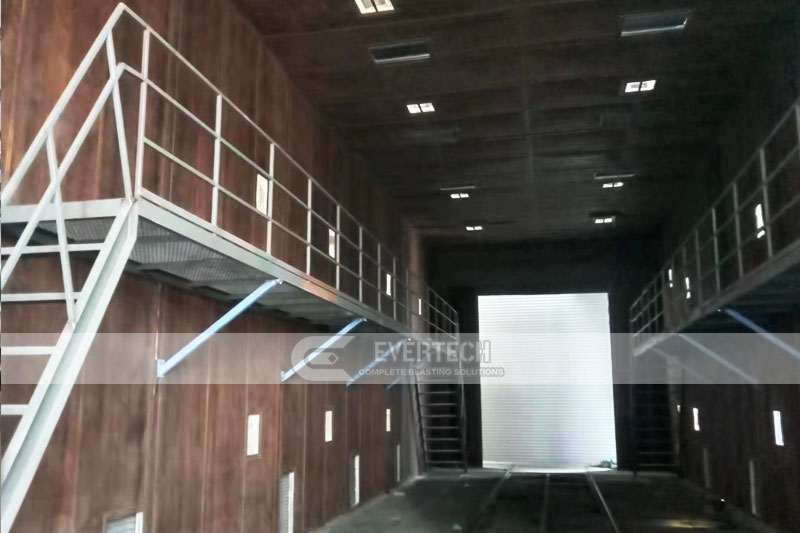

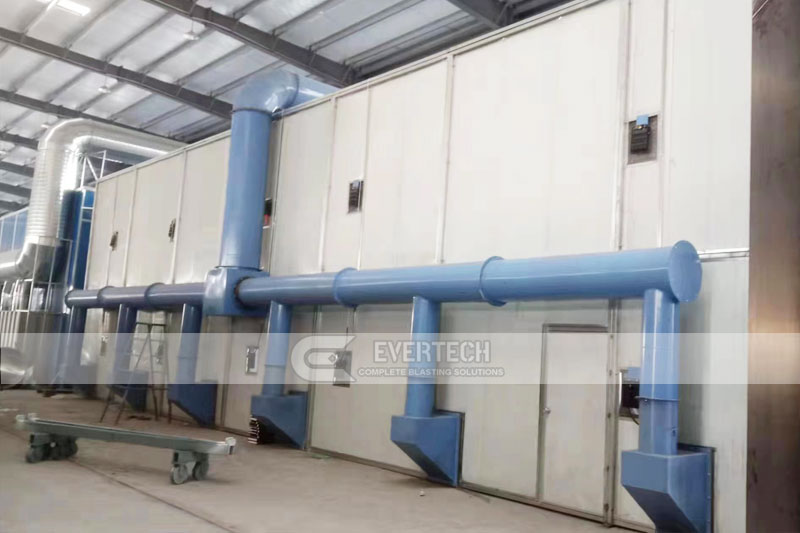

An industrial sandblasting room was just installed in April,2022. The blasting room size is 17.5m×4m×5m with full automatic floor scraper reclaim conveyor, mainly used for blast cleaning semi-trailers and containers.

Industrial sandblasting room is a kind of rust removal equipment, that can replace traditional slab rust-re-moved technique. While changing the surface roughness, it can also remove welding slag, burrs, and flash. High efficiency, low cost and good quality, unmatched by traditional chemical and other rust removal equipment. Which is primarily for cleaning big steel structural parts, vessel, truck chassis to remove the rusty spot, rusty layer and scale cinder on steel to obtain a uniform, smooth and glossy metal surface allowing improved coating quality and higher anti-corrosion performance.

The main feature of sandblasting room is that the operator works in the sandblasting chamber, through manually control blasting gun to finish blasting work, which can ensure 100% rust removal. Protective clothing and helmet protect the operator from abrasive shock and ventilation provides fresh air through the helmet.

Advantages of Industrial Sandblasting Room:

Full floor type reclaim system. This type of reclaim system is the fully automatic system, which can be sandblasting continuously. The full floor all uses the scraper conveyor, the abrasive falls into the scraper conveyor and the scraper will transport them into the recycle system without any manual operations. The cleaning efficiency can be up to 100 percent. It is suitable for the high production company.

The sandblasting room can be designed and manufactured according to the customer’s product characteristics and sandblasting requirements. There is no need to design and manufacture complex foundations, which saves foundation construction costs and greatly saves engineering costs. There is no need for a large amount of abrasives to be stocked in the recycling spiral.

The abrasive recovery rate The main electrical components are imported products, which have the advantages of stable performance, safety and reliability, long service life, simple maintenance, etc.; the sandblasting room has high-definition visibility inside the chamber, and the room body is naturally filled with air, which saves energy Consumption; the sandblasting room adopts two-stage dust removal, the first stage adopts a cyclone separator, and the second stage adopts a filter-type dust removal system.

The total dust removal efficiency can reach more than 99.99%; on the upper part of the front roof of the sandblasting room, there is a sound “Light alarm system” is equipped with an emergency stop call button in the sandblasting room; the electrical control of each system adopts interlocking control. When one of the systems fails, the related systems stop working and the spray gun stops spraying; the sandblasting room adopts Architectural decoration design, simple appearance, beautiful, standardized, good noise reduction effect, and convenient installation.

Why choose Evertech blast:

-Wide application, Easy to install and use.

-Customized, Meet your needs.

-Good stability, Low failure rate (technical maturity, technical

-precipitation, skilled workers).

-Exquisite appearance (mature craft).

-Large factories, Prompt delivery.

-Strict quality inspection department.

-Factory direct selling with competitive price.

-Over 25 years’ production experience.

-Professional design team to serve you.

-Mainly electrical control system adopt international well-known brand.

-CE certificate assure you our quality.
