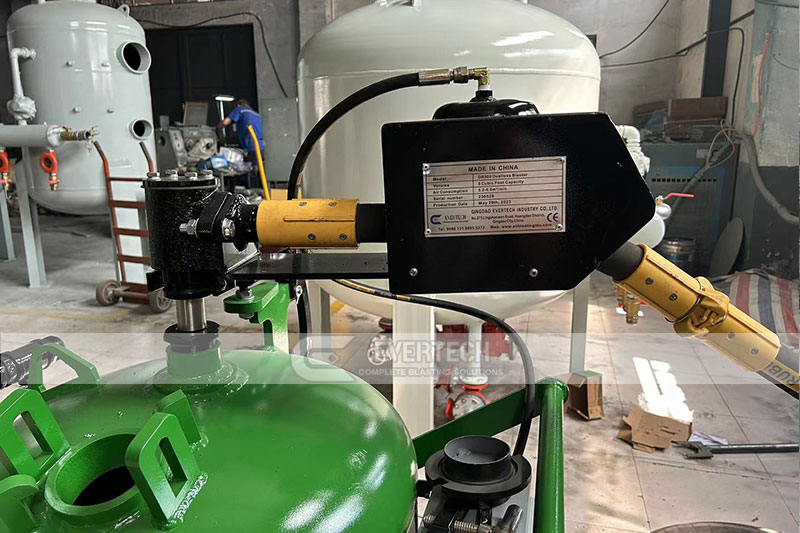

Portable Dustless Sandblaster for Classic Truck Parts

Portable dustless sandblaster tank is a necessary tool for traditonal corrosion resistance operation, such as marine repair,rust removal of piping and tank body,renewal of container etc.which directly affect the

cleaning effect of the workpiece. According to the requirements of work efficiency, the size of abrasives, etc., the sand-blasting tank of appropriate specifications can can be selected. Automatic spray guns can be configured for automated cleaning. All Auto Portable Industrial portable sand blasting kettle Cleaning Equipments/Sand Blaster For Sale are suitable for connection to pneumatic or electro-pneumatic remote control systems and pneumatic remote control system with air blast and blow function.

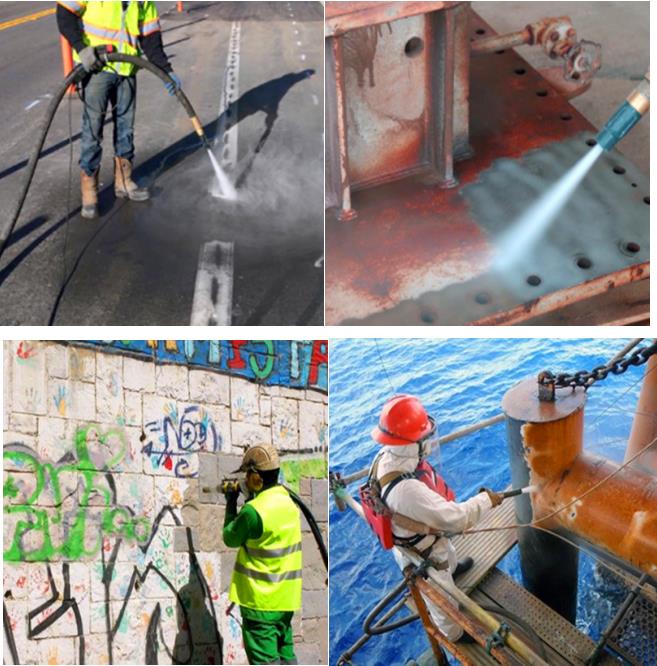

Portable dustless blaster tank usage:

1.Structural steel cleaning

2.Rust removal for large scale equipment

3.Rust removal for bridge and ship surface

4.Surface treatment of glass

5.Texture handing of steel, carving and wood

6.Deburring

7.Pre-plating treatment

8.Pre-painting treatment

9.Spraying decoration

10.Descaling

11.Automobile chassis refurbishme


Type

DB150

DB225

DB500

DB800

DB1500

DB3000

Capacity

1 Cuft

2 Cuft

5 Cuft

8 Cuft

15 Cuft

30 Cuft

Blast time

15 min

30 min

60 min

90 min

2-3 hour

4-6 hour

Hose

50 ft.

50 ft.

50 ft.

50 ft.

100 ft.

100 ft.

Weight KG

~72

~120

~167

~194

~380

~554

Compressor

120CMF

120 CFM

185CFM

300+ CFM

425+ CFM

425+ CFM

Operating Pressure

30-150 PSI

30-150 PSI

30-150 PSI

30-150 PSI

30 to 150 PSI

30-150 PSI

Blasting Hose

10-15M

10-15M

10-15M

10-20M

15-30 M

15-30M

Mark 1. Blasting hose length can be lengthen or shorten accordingly.

Mark 2. Blasting nozzle diameter 8mm,10mm, 12mm for your choice.

Mark 3. Requirement for air compressor 4-10 bar, 60-3755 CFM, 30-150 PSI, 0.2-1.0 Mpa.

Mark 4. Equip with fill funnel

Mark 5. Spare parts & Abrasive are Available

Consumables list of portable dustless sand blasting machine per batch

Type

Water

Abrasive

Rust Inhibitor

DB150

5gal (19L)

50lbs (22.68kg)

7oz (207g)

DB225

10gal (38L)

100lbs (45.36kg)

14oz (414g)

DB500

20gal (76L)

200lbs (90.72kg)

28oz (828g)

DB800

30gal (114L)

300lbs (136.08kg)

42oz (1242g)

DB1500

75gal (284L)

750lbs (340.2kg)

105oz (3105g)

DB3000

150gal (568L)

1500lbs (680.4kg)

1.5gal (5.68L)



Customized different capacity ,different configurations and different color
