Automatic Recycling Vacuum Sandblasting Machine

Automatic Recycling Vacuum Sandblasting Machine is designed to recover spent recyclable abrasives from a blasting area into a silo for subsequent return to the blast cleaning equipment or, in the case

Model Type ETV
Price Negotiation
Rating 4.0 /5 based on 28 ratings and reviews
Operation Method Automatic Recycling
Brand name Evertech
Place of Origin Qingdao, China
Certification CE, ISO, UL
Process Batch
Industry Light/Medium
Delivery Time Within 3 weeks

Product Description

Working Principle

Automatic Recycling Vacuum Sandblasting Machine is designed to recover spent recyclable abrasives from a blasting area into a silo for subsequent return to the blast cleaning equipment or, in the case of expendable abrasives, for disposal into a waste hopper. After depositing the abrasive into the silo, the vacuum flow containing air and dust continues on to the suction unit, where the dust particles in this stream are removed by high performance filter cartridges prior to exhausting air to atmosphere.

Detailed Introduction

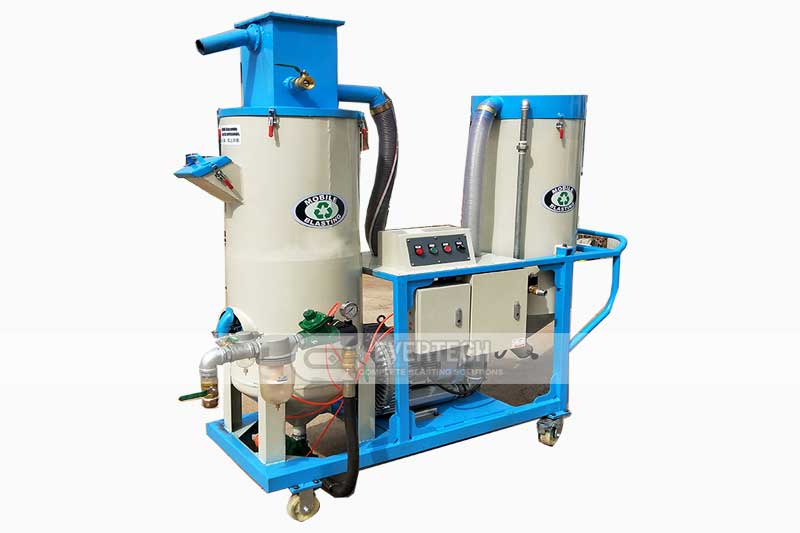

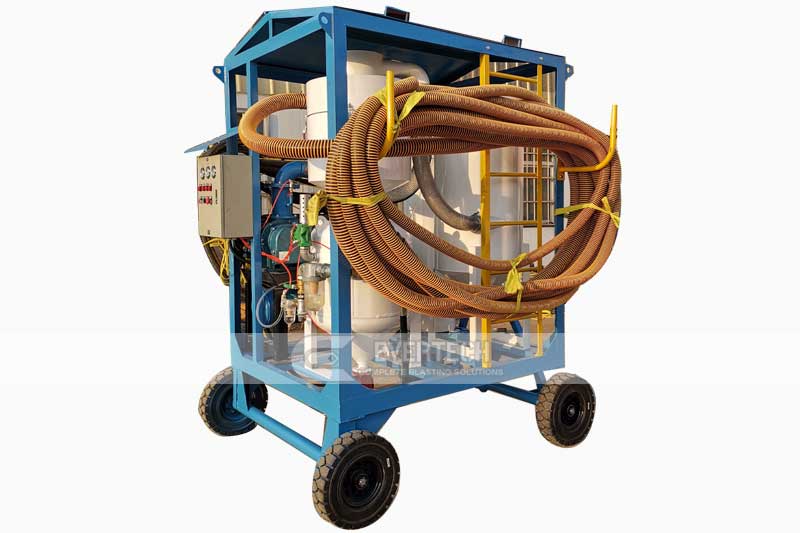

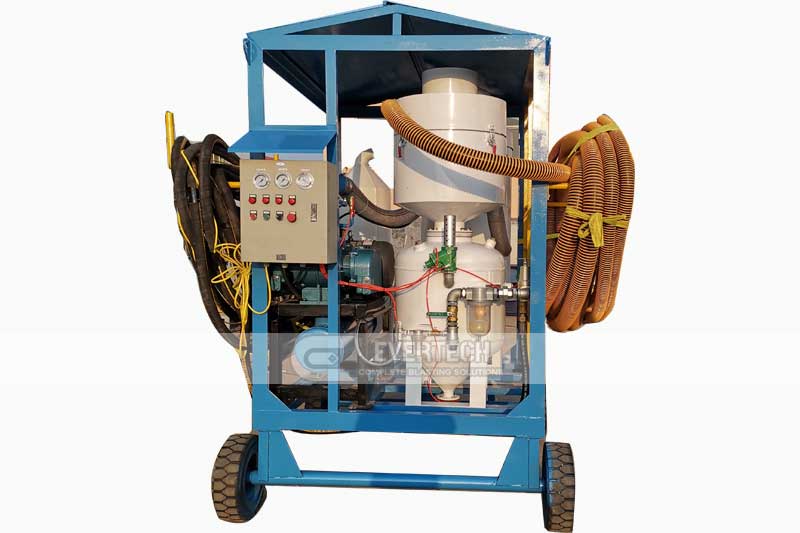

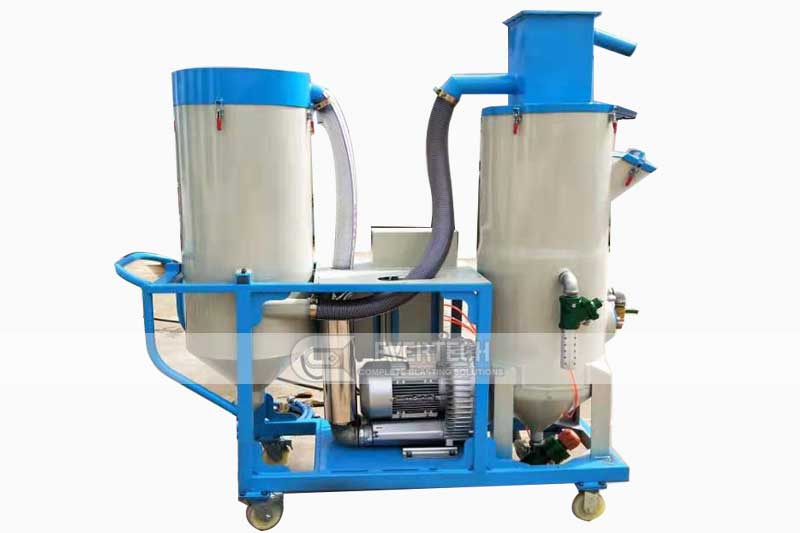

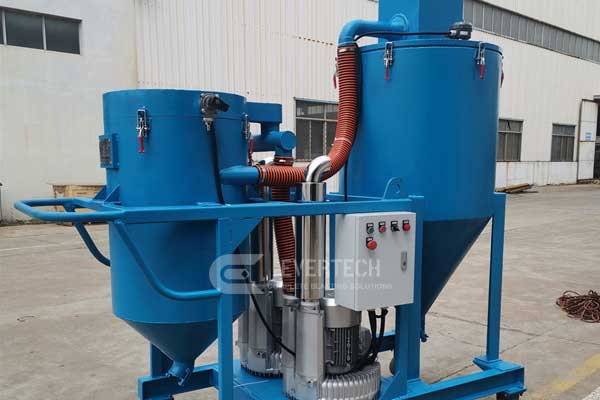

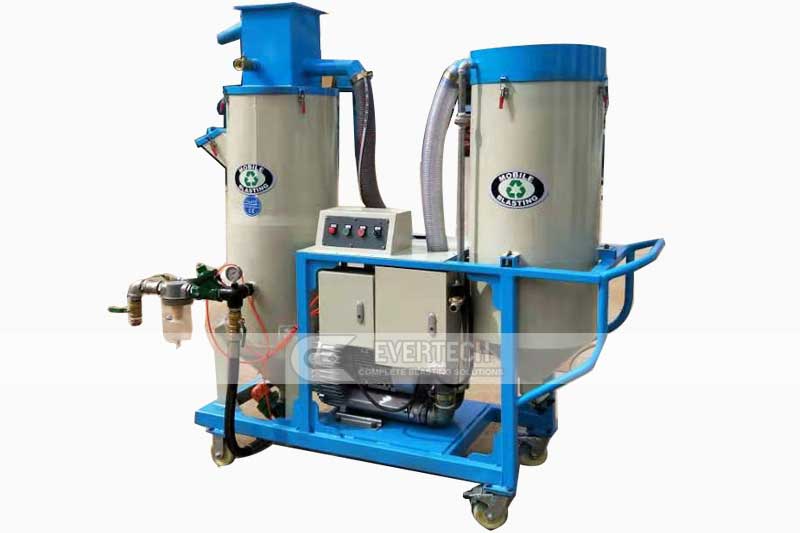

Mobile automatic recovery vacuum sand blasting machine features an integrated blast pot, media vacuum recovery system, and dust collection all in a single compact unit(consists of suction blast machine with remote control, blast hose, blast head assembly,reclaimer & separator and pneumaticlly generated abrasive recovery system, dust collector and cart). it is widely used for descaling, surface texturing, and paint preparation, mainly used to clean rust removing at oil field, container renew, etc, and pneumaticlly generated abrasive recovery system makes it to be used without dust and disposal problem.

Blast and recovery systems can be used to simultaneously blast and recover (closed circuit blasting) or can be used for open air blast and then subsequent abrasive clean-up.

Simultaneous blast and recovery eliminates dust clouds, poor visibility and costly clean-up. The capability of independent blast and recovery makes the vacuum sandblasting machine a productive and versatile tool suitable to many different applications.

Vacuum sand blaster is ideal for big objects such as ship hulls, large tanks and concrete bridge surfaces..

Key Parts Introduction

  • Powerful benefits

    --100% dust free operation because of fully automated blasting & vacuum start/stop sequence

    --Clean, abrasive free object surface after blasting

    --No time-loss through automatic filter cleaning and dust discharge

    --Easy disposal of collected dust in plastic bags

    --Unit can be relocated and/or transported easily

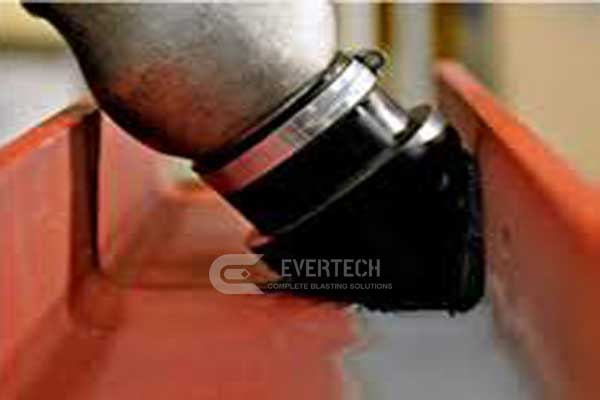

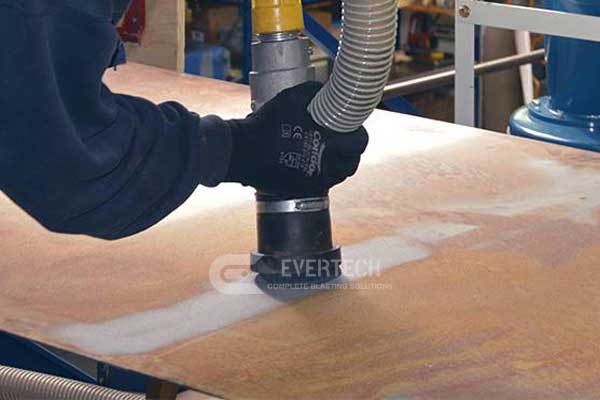

    --Wide range of brushes to fit all (flat, cornered, radiused) surfaces

  • Better blasting value

    --Long(er) uninterrupted blasting sessions because of 40, 60 or 100 liter blast pots

    --Suited for all abrasives, also ‘heavy ones’ like steel shot or chilled iron grit

    --Blasting patterns 50 or 75 millimeters

    --(Spare) parts can be simply removed for quick maintenance

    --Units are easily demounted in smaller parts for use in contained spaces (ships, tanks, etc.)

    --Hose lengths up to 50 meter

  • Quality includes

    --Renowned Nederman (Norclean) vacuum equipment for top results at low energy use

    --Wear resistant metering valve handles all abrasives (also steel grits, fine aluminum oxide, etc.)

    --Separate main air valve makes for almost wear- and maintenance free use

    --Spray painted, galvanized and non-ferrous fittings

  • Environmentally friendly

    --No dust and contamination which are collected in plastic bags for safe disposal

    --Closed circuit blasting saves on abrasive costs
