Painting booth

Key Parts Introduction

• Door

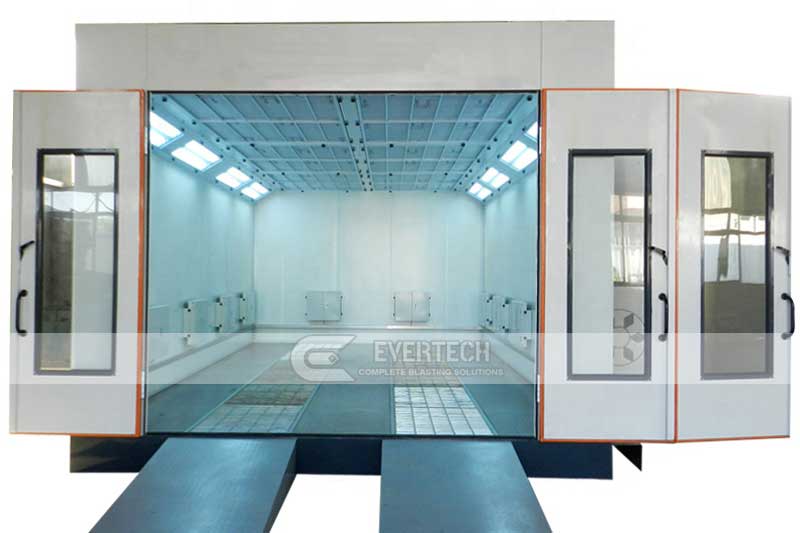

  Tri-Fold

  A single opening is covered by three doors that can have a single door on one side, and two on the other. The single door can be opened and closed independent of the other two. Or if you choose, you can have all three doors open and close “Accordion Style”, in which all three doors are connected (and still have a single panel act as an independent single door).

  Bi-Fold

  A single opening is covered by two sets of doors, each having two panels and hinged in the middle. Each set can be opened independently of the other.

  Roll Up

  This type is the standard roll up door that you would see on a garage or industrial unit. The whole door lifts from the bottom and rolls up at the top.






• Control Systems

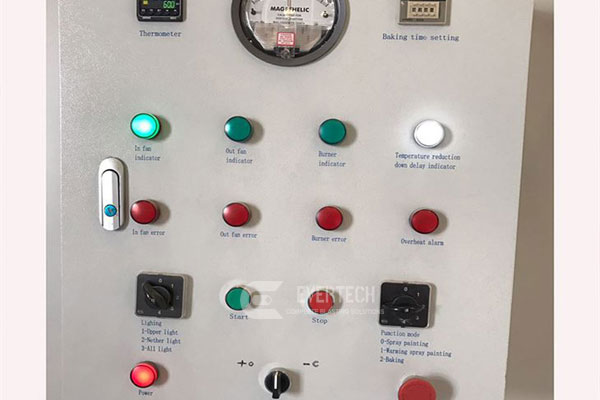

  As the various options that you require are added to your booth, the control options become more complicated. While it can start out with a simple “On-Off” switch, it can end up requiring a fully digital system with a touch sensitive display screen and computer control system. Not to worry! We can engineer the entire system to easily control all aspects of your equipment, while keeping the daily operations simple, yet effective. We will even show you how to properly operate each and every function, so that you can get right to work.






• Lighting

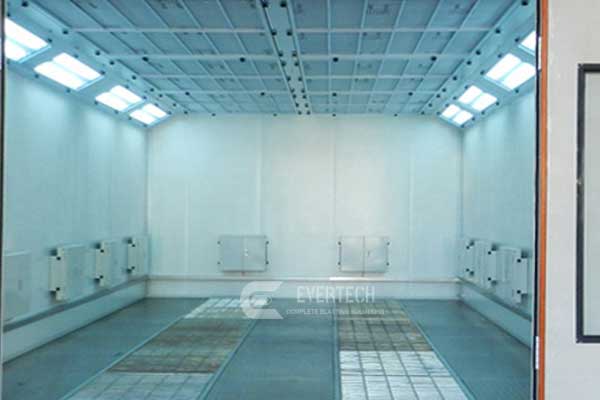

  The Standard Series Booths are designed with horizontal lights in the side wall and hip panels for shadow free lighting. Some of our “cheap” competitors build their booths using 1 or 2 vertical lights in the side wall of the booth, because it’s cheaper to build it that way. All Evertech booths have horizontal light fixtures that run along the length of the spray booth, NOT up and down!






• Filters

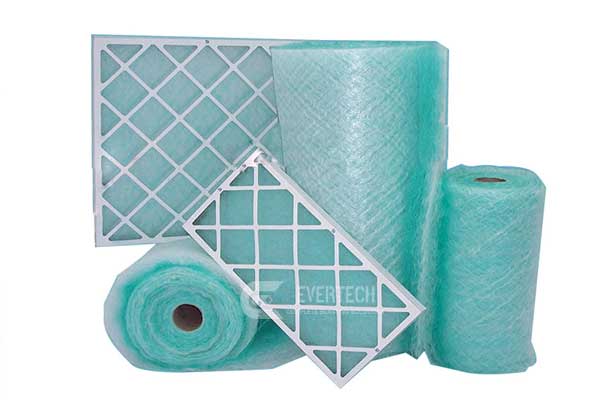

  One of the major functions of a spray booth is to remove overspray from the air stream before the air is exhausted from the booth. Another is to remove airborne particulates from the air before it is brought into the work area of the booth. Marathon uses standard intake and exhaust filters, readily available from most paint and filter suppliers. Both types of filters can be upgraded to a higher level of filtration, as well as filtering out harmful components from the use of chromates. The choices for filtration are many.
