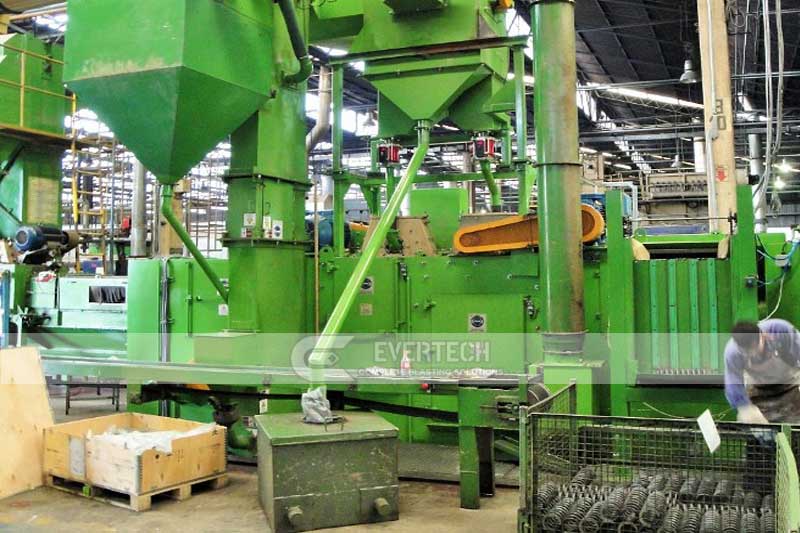

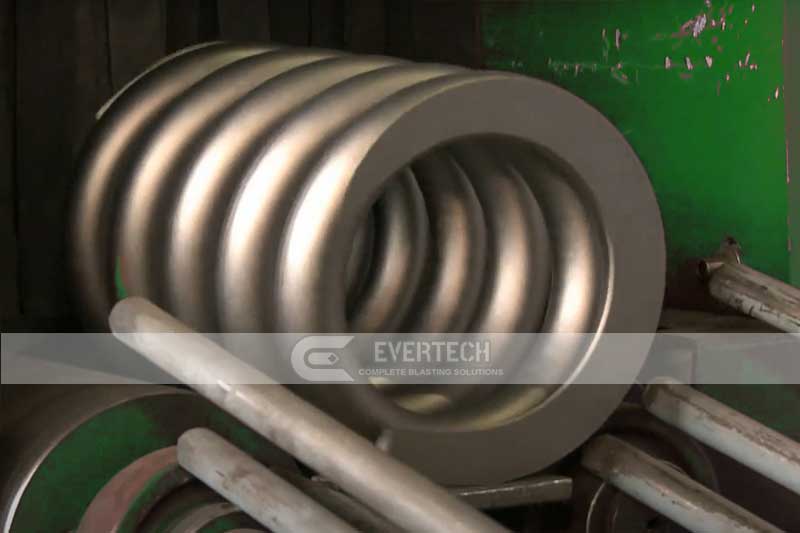

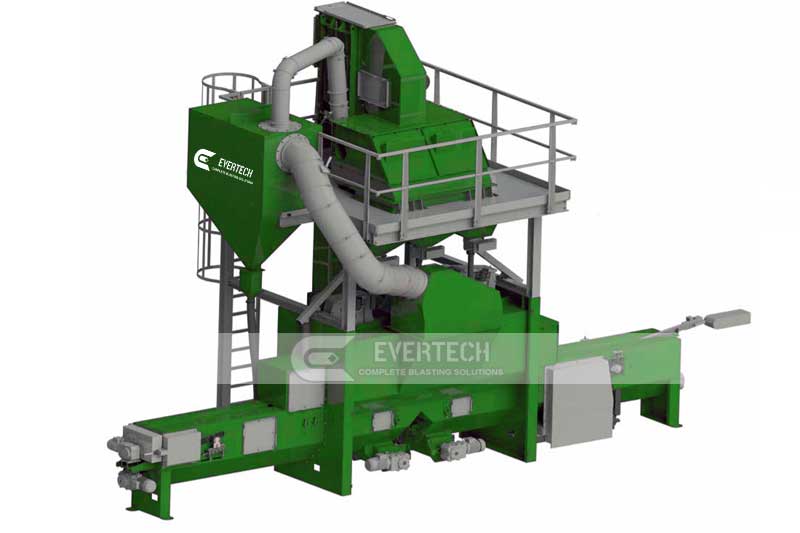

Spring Shot Peening Machine

Key Parts Introduction

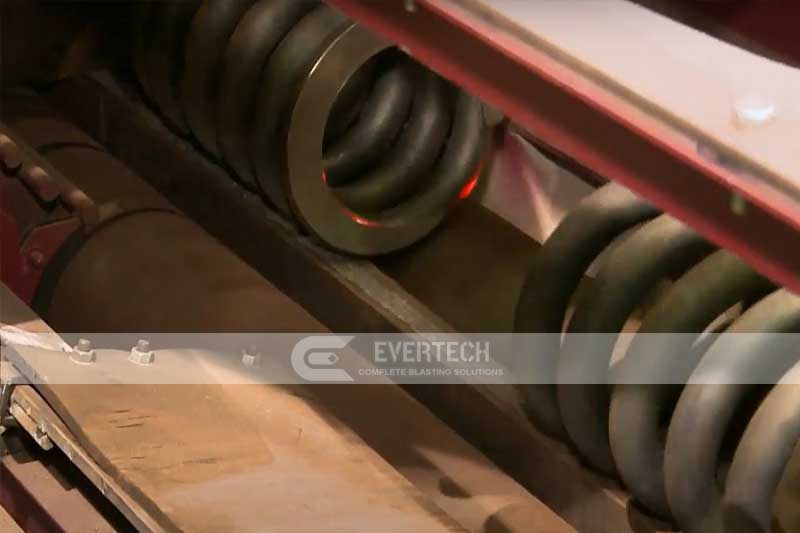

• Roller Chain Conveying System

  -It is composed of chain sprocket, push tooling and drive motor. It can be operated forward and backward by frequency conversion speed regulation. The spacing of dialing tool shaft is 550MM, and the spacing of rollers can be adjusted (the adjustment time is less than 20 minutes).

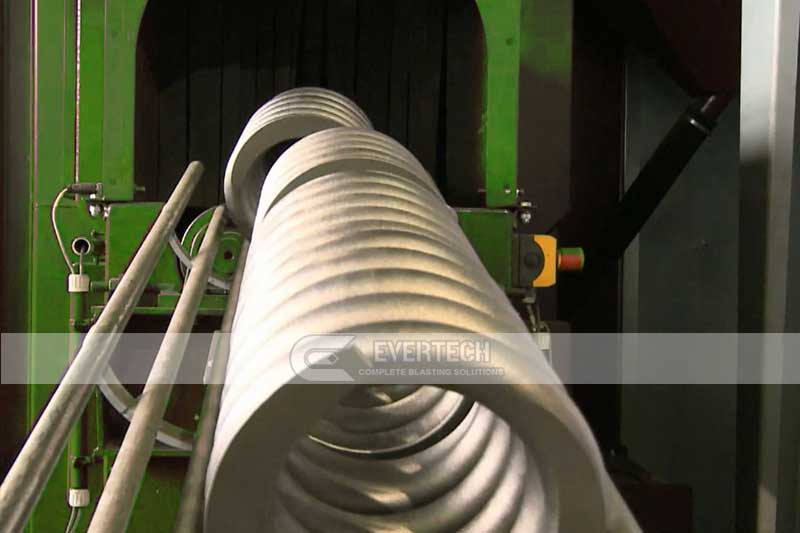

  -A set of drum rotating system includes two rollers, sleeves, bearing seat and sprocket chains. Driven by decelerating motor, it can operate in both positive and negative directions by using frequency conversion speed regulation.

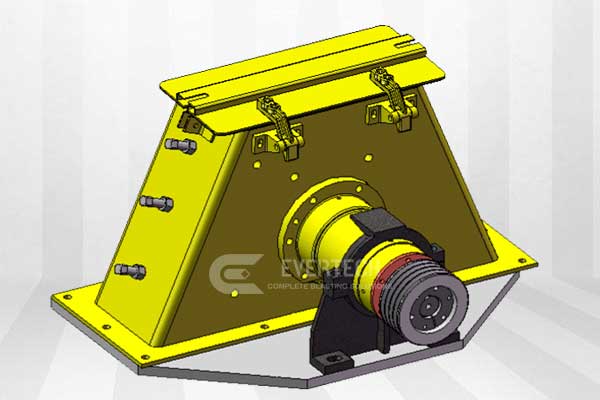

• High performance blast wheel

  Lower finishing time

  up to 77% higher blasting power and freeing up of new capacity.

  Low energy consumption

  up to 25% cost savings and fulfillment of important environmental guidelines.

  Low consumption of consumables

  up to 30% cost savings on abrasives and replacement parts.






• Elevator system

  -The elevator is used to lift the steel shots recovered by the screw pusher into the separator and silo.

  -The elevator is made of precisely welded steel plates and can be disassembled in segments. Maintenance and inspection windows are provided for easy maintenance.

  -A drive and deceleration motor is located at the top of the hoist, which acts as the power source of the elevator.

  -The system consists of two precision-machined hubs, one hoist case, one high-performance wear-resistant belt and several alloy hoists formed by one stamping process.






• Electrical control cabinet

  -Using Siemens PLC and touch screen

  -Using Delta or BEST converters

  -Use CHINT or Schneider brand low-voltage electrical components

  -Using shot blasting time controller

  -Using ADE aerodynamic components

  -Flow detection ammeter

  -lamp

  -1 set of special constant temperature air conditioning (optional)
